Optimize your workflow
with a professional document-creation solution

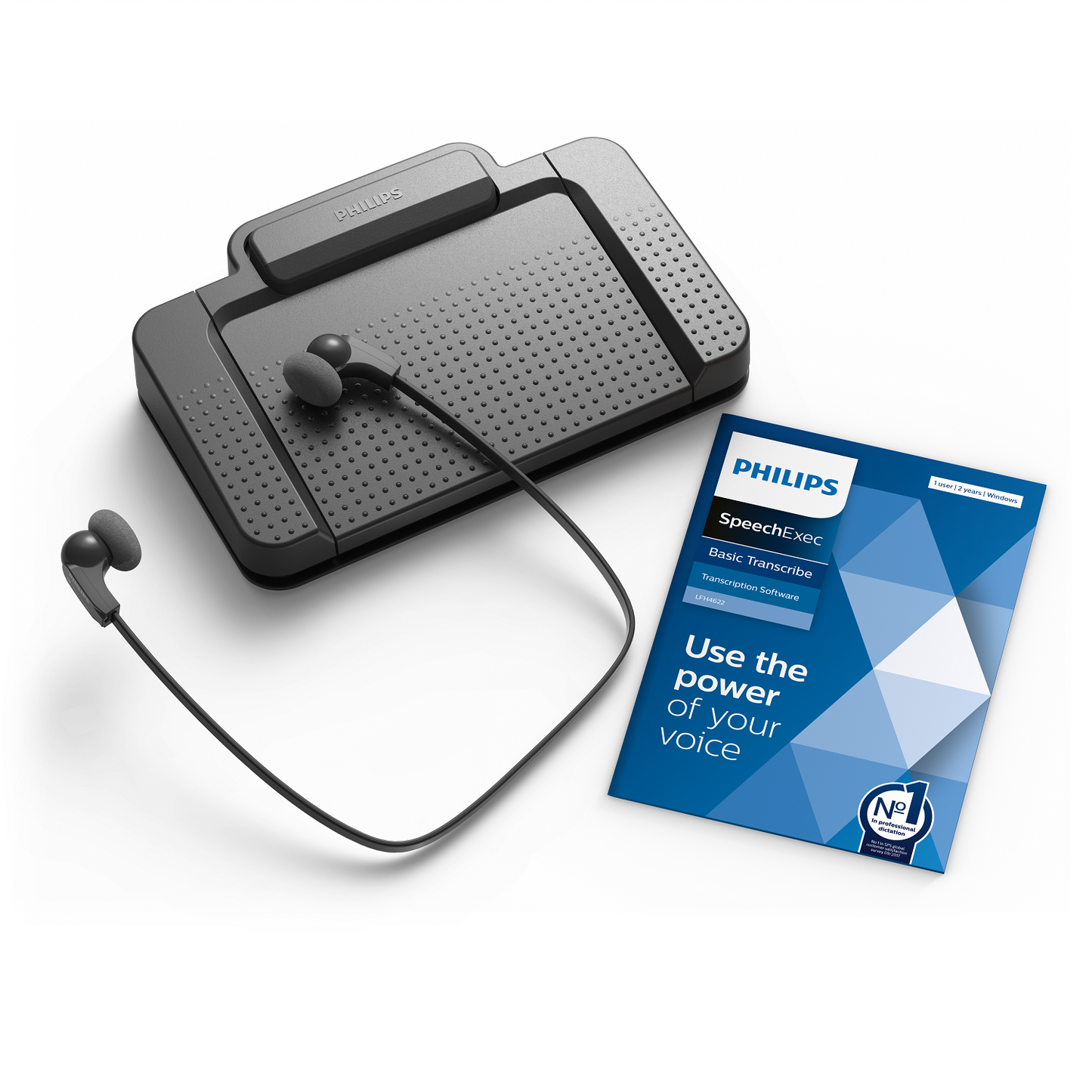

The Transcription Set is a digital document creation solution specifically designed to make transcription easy and intuitive. The ergonomic accessories and the innovative SpeechExec workflow software let you manage your jobs easily.
Features
Ergonomic foot control for comfortable use even when used over extended periods
The foot control was developed in cooperation with hospital ergonomists and day-to-day power users to ensure a perfectly smooth transcription process with minimal physical strain. Magnetically controlled contact switches, rugged pedals and a waterproof design make it extremely durable and give the device and very long life.
Fast and efficient playback control for quicker and more accurate transcriptions
Start, pause, rewind and fast-forward audio files with only a slight movement of the foot tip, keeping your hands free for uninterrupted typing.
Lightweight stereo headphones for enhanced wearing comfort
Lightweight, under-the-chin-style stereo headphones designed to deliver excellent sound quality, with soft ear cushions for enhanced wearing comfort.
SpeechExec workflow software for efficient data management
The SpeechExec software organizes the workflow of dictation files and resulting documents between author and transcriptionist and allows them to monitor the status of their work.
Priority setting and notifications for urgent recordings
With the included priority-setting option, urgent recordings can be prioritized. This guarantees that important dictation files will be identified at a glance and get processed and delivered first.
Seamless integration into Philips digital dictation solutions
The transcription set can be seamlessly and easily integrated into existing Philips digital dictation solutions.
SPECIFICATIONS
Package contents
• SpeechExec Basic Transcription Software (2-year subscription included)
• USB Foot Control ACC2330
• Stereo Headphones LFH0334
• Quick start guide
Convenience
• Configurable foot control
• Lightweight headphone design
• Clear job overview
• Versatile audio player
• Playback speed control
• Automatic file routing
Foot control
• Connectivity: USB plug
• Product dimensions (W × H × D): 160 mm × 150 mm × 18 mm/6.3" × 5.9" × 0.7"
• Weight: 0.61 kg/1.3 lb
Headphones
• Style: under chin
• Cable connection: one-sided
• Cable length: 3.0 m/10 ft
• Connector: 3.5 mm, stereo, right angled
• Acoustic system: open
• Magnet type: neodymium
• Diaphragm: PET dome
• Voice coil: copper
• Impedance: 2 × 32 Ohm
• Maximum power input: 2 × 10 mW
• Sensitivity: 103 dB
• Speaker diameter: 14 mm/0.6"
• Sound quality: optimized for voice playback
• Connector finish: gold-plated
• Weight: 53 g/0.12 lb
System requirements for Philips SpeechExec software
• Processor: Intel dual core or equivalent AMD processor, 1 GHz or faster processor
• RAM: 4 GB (64 bit)
• Hard-disk space: 100 MB for SpeechExec software, 4.5 GB for Microsoft .NET Framework
• Operating system: Windows 11 Pro, Windows 10 Pro/Enterprise (64 bit)
• Graphics: DirectX-compliant graphics card with hardware acceleration recommended
• Sound: Windows-compatible sound device
• Free USB port
• Headphone output or speakers
• Internet connection
Green specifications
• Compliant to 2011/65/EU (RoHS)
• Lead-free soldered product
